Description
– Optimal Energy Efficiency
– Certified Silent Operation
– High Flexibility
– Italian Design
– Easy and Quick to Install
– ABS Shock Absorbent Outer Casing
– Tested to EN-60335-2-80 Standard
Product Model:
|
MODEL |
Voltage / Frequency |
Watt |
AMP |
m³/h Extract |
m³/h Intake |
RPM Extract |
RPM Intake |
Lp dB (A)3m |
Weight |
Insulation |
IP |
⁰C Max |
|
|
||||||||||||
|
150/6″ AR |
230 – 240V / |
25 |
0.11 |
235 |
150 |
1340 |
2040 |
37.5 |
2.07 |
cl.ll |
X4 |
50 |
|
230/9″ AR |
230 – 240V / |
26 |
0.13 |
480 |
310 |
790 |
1080 |
35.6 |
3.45 |
cl.ll |
X4 |
50 |
|
300/12” AR |
230 – 240V / |
45 |
0.21 |
1050 |
700 |
840 |
1085 |
40.2 |
6.13 |
cl.ll |
X4 |
40 – 50 (60Hz) |

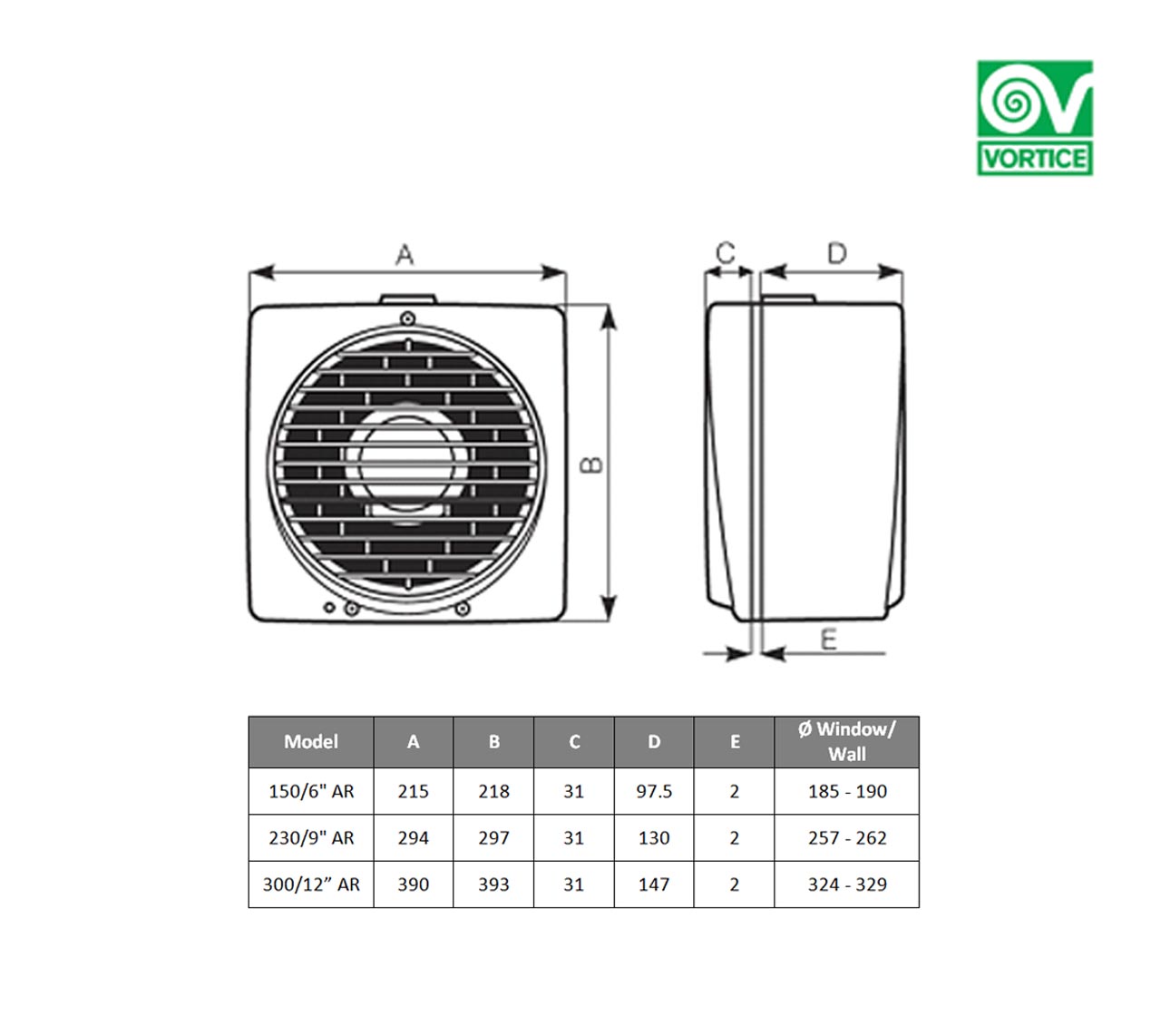

Dimension
| Model | A | B | C | D | E | Ø Window/ Wall |
| 150/6″ AR | 215 | 218 | 31 | 97.5 | 2 | 185 – 190 |
| 230/9″ AR | 294 | 297 | 31 | 130 | 2 | 257 – 262 |
| 300/12” AR | 390 | 393 | 31 | 147 | 2 | 324 – 329 |
